Outdoor Fiber Patch Cord

» Outdoor Fiber Patch Cord

Armored Patch cord Optic Patch Cable Single Mode Outdoor DLC-DLC

Place of Origin:	Guangdong, China
Brand Name:	SOGOO
Certification:	CE, RoHS

Minimum Order Quantity:	100 pcs
Price:	10~15 USD
Packaging Details:	Standard packing
Delivery Time:	7-10 working days
Payment Terms:	T/T; Paypal; Western Union
Supply Ability:	20000 pcs per week

enquiry

Specifications

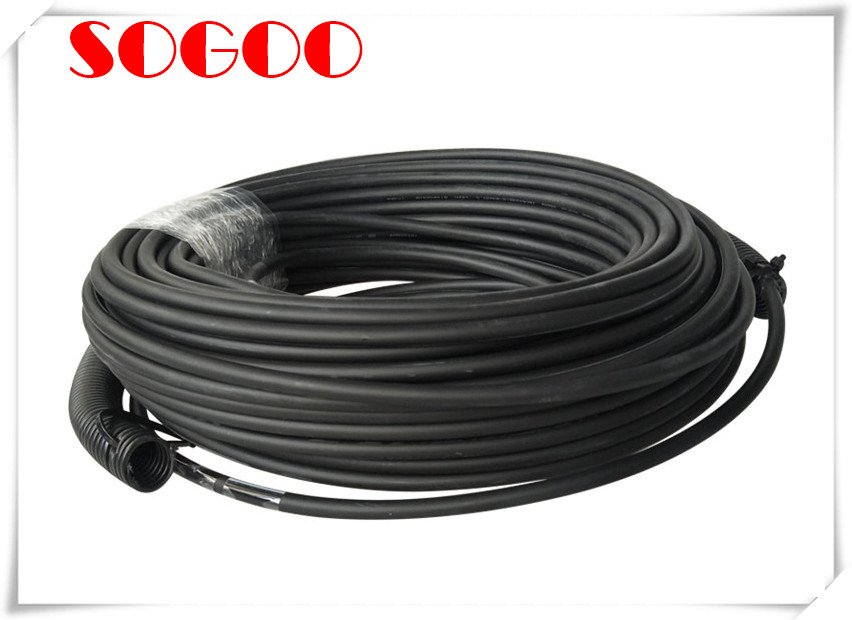

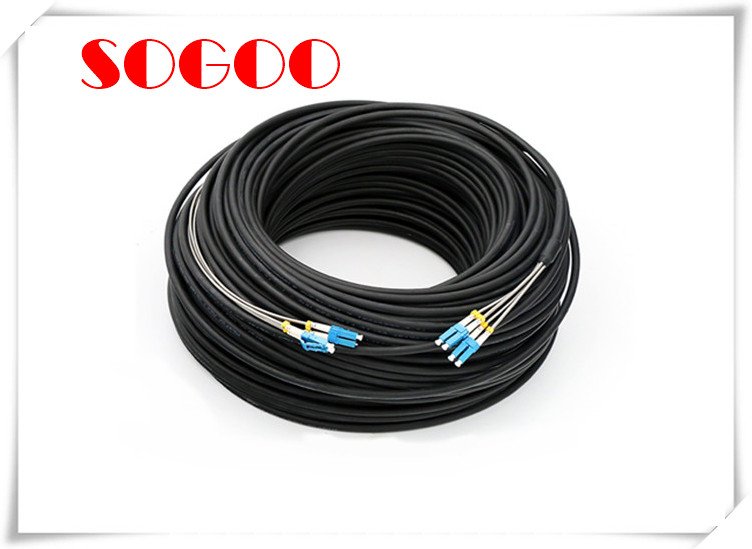

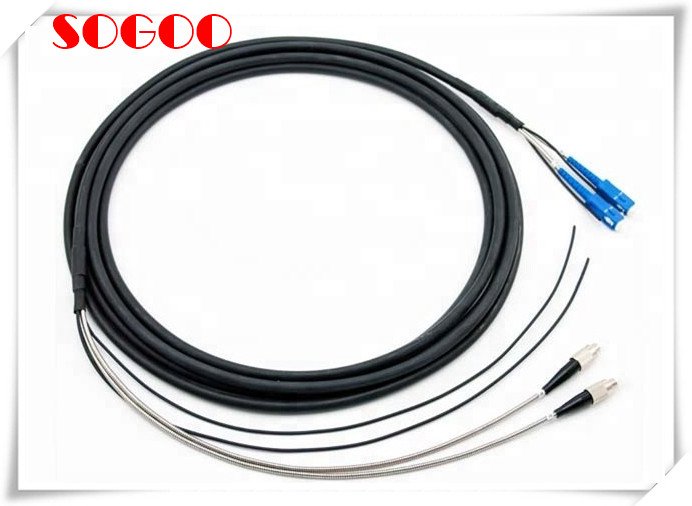

Armored Fiber Patch cord Optic Patch Cable Single Mode Outdoor DLC-DLC

Armored Patch cord Optic Patch Cable Single Mode Outdoor DLC-DLC, armoured or unarmoured, customized length, wide used for 3G 4G base station BBU, RRU, RRH, LTE. FC -LC outdoor fiber optic patch cord is standard size for Duplex LC/FC Connectors, and he outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustpoof. This patch cords widely used in FTTA, Base station, and the outdoor waterpoof.

Armored Patch cord Characteristics:

1. Simplex and duplex connector available;

2. High precision of mechanical dimensions;

3. Good exchange ability and good durability;

4. Low Insertion Loss, High temperature Stability and Good exchangeability.

5. Fan-out Available, Pigtail Available, Various Boot(cable) Size Available

Fiber Specification for Armored Patch cord

Fiber type	50/125,9/125
Core Diameter	50 + 2.5
Core Non-Circularity	<=5.0 %
Cladding Diameter	125.0+1.0um
Cladding Non-Circularity	<=1.0 %
Coating Diameter	245+7
Coating-Cladding Concentricity Error	<=12.0um
Coating Non-Circularity	<=6.0um

Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

Connecton Specification
ITEM	PARAMETER
Connector type	DLC/UPC
Insertion Loss	<=0.3db
Return Loss	>=35db
Fiber mode	Multi-mode,50/125,single mode,9/125
Operating wavelength	850nm, 1300nm,1310,1550nm
Test wavelength	850nm, 1300nm
Repeatability	<=0.1
Interchangeability	<=0.2dB
Durability	<=0.2dB
Fiber Length	1m~150m
Length and tolerance	10cm
Operating Temperature	-40C ~ +85C
Storage Temperature	-40C ~ +85C

Our Service

1. Factory Price

2. OEM

3. Fast delivery,low freight

4. Customize service

Usage

Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE

Our Advantages :

1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires in fluent English.
3. Distributorship are offered for your unique design and some our current models.
4. OEM any your customized points, we can help you to design and put into product.
5. Protection of your sales area, ideas of design and all your private information

CATEGORY AND TAGS:
Outdoor Fiber Patch Cord 4 cores LC-LC Armored Fiber Optic Patch Cable, Armored Fiber Optic Patch Cable, armored fiber patch cord, LC outdoor fiber patch cord
