Portable Fiber Optic Cable Reel With SC/LC/FC Connector 2/4/6/8/12 Cores
-
Place of Origin: Guangdong, China Brand Name: SOGOO Certification: CE, RoHS Minimum Order Quantity: 10 pcs Price: 10~15 USD Packaging Details: Standard packing Delivery Time: 7-10 working days Payment Terms: T/T; Paypal; Western Union Supply Ability: 2000pcs per week
- Specifications
Portable Fiber Optic Cable Reel With SC/LC/FC Connector 2/4/6/8/12 Cores

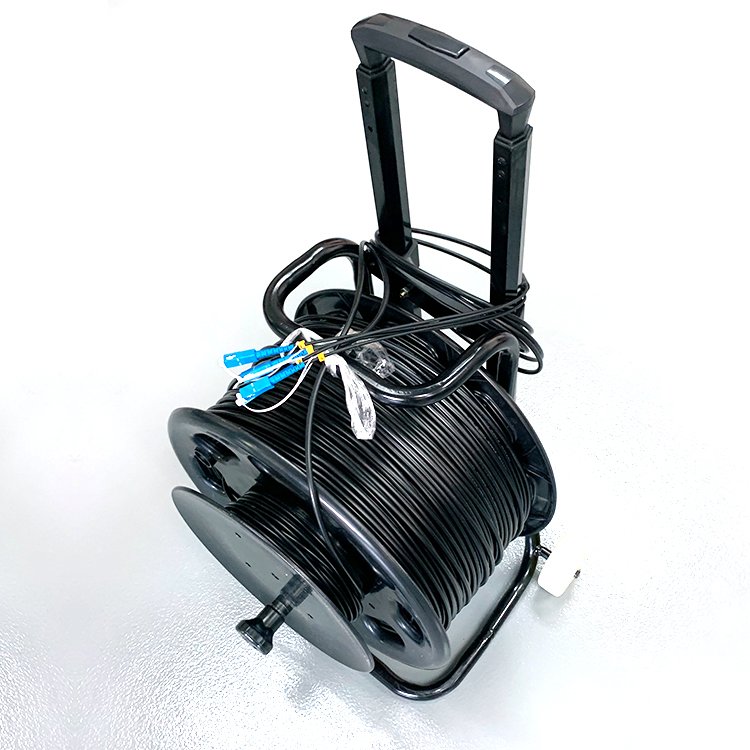

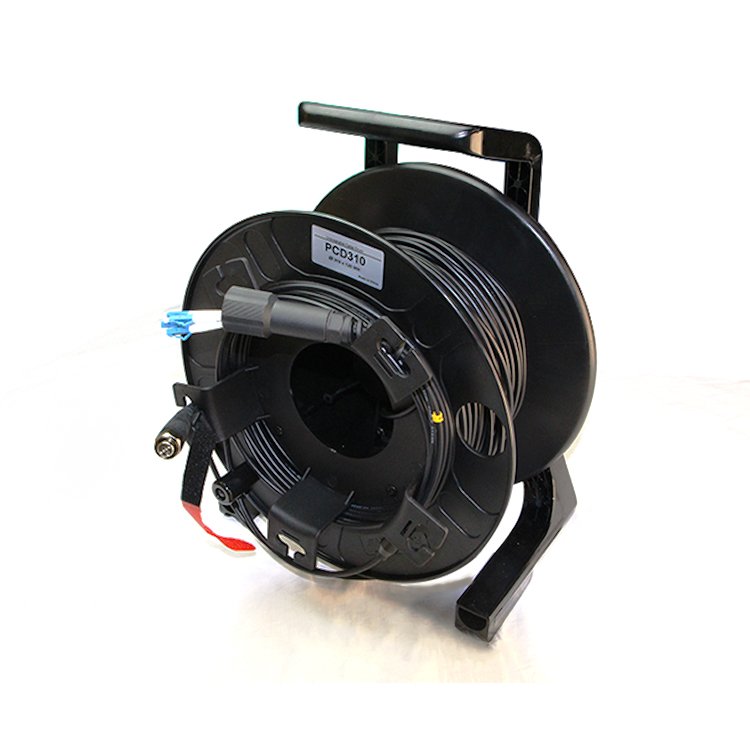

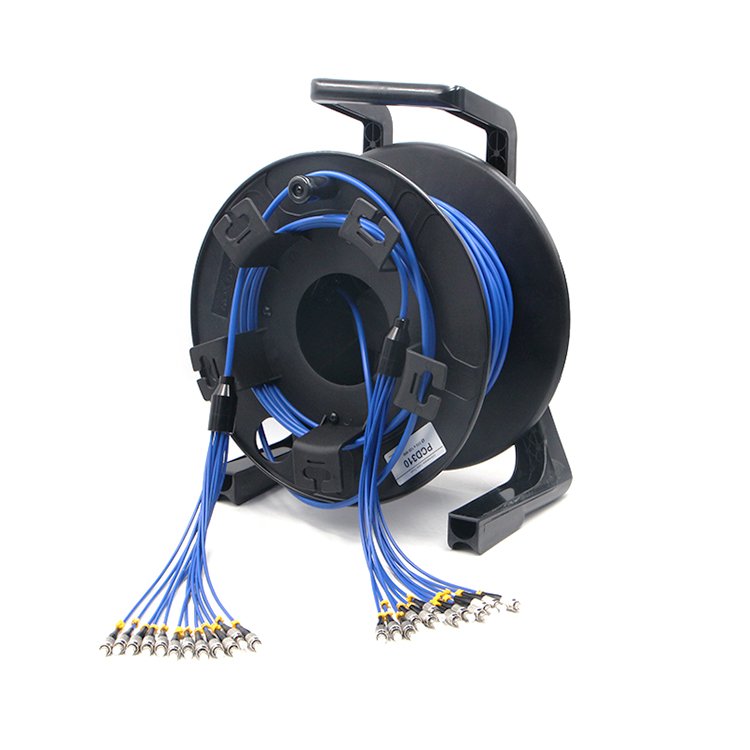

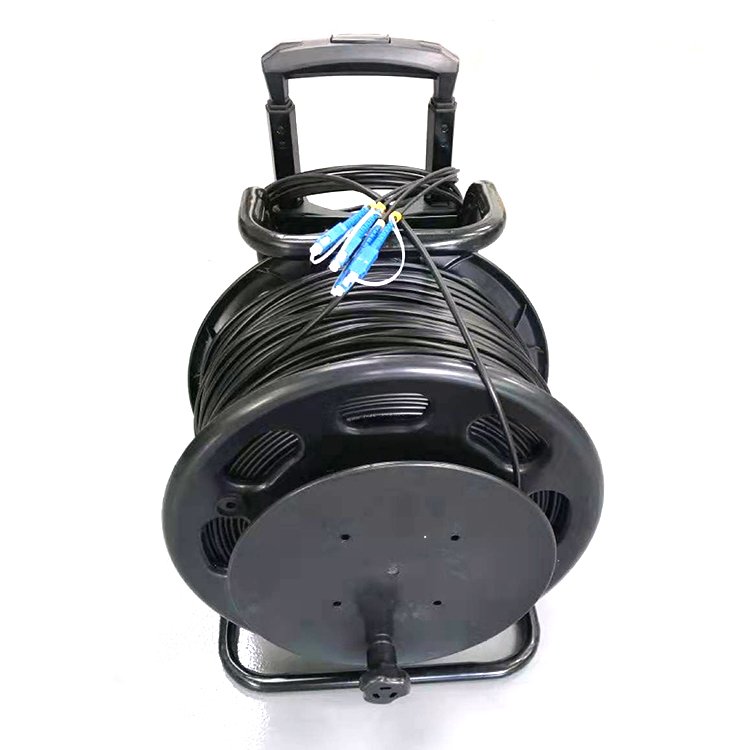

The Portable fiber optic cable reel is used to carry various types of fiber optic cables and wire products. It is ideal for using in communication, broadcast and pro audio applications. Additionally, detachable pull rod and pulley allows operators to easily rotate reel in deployment or take-up situations and easy transportation and deployment.
Portable Fiber Optic Cable Reel Key Features:
1.Stainless steel tube provides good protection against physical damage.
2.Light weight and flexible with about a 30mm minimum bend radius, easy to install.
3.Low insertion loss and high return loss, stable transmission.
4.Max bending radius due to the excellent elasticity matallic tube.
5.Stainless steel armor against external factors including rodents.
6.Strong tensile strength, prolong the service life.
Portable Fiber Optic Cable Reel Technical Specs
|
Item
|
Units
|
Single Mode
|
Multimode
|
|
|
Core/Mode Diameter
|
μm
|
9.2±0.4μm 1310nm 10.4±0.8μm 1550nm
|
50±2.5μm
|
62.5±2.5μm
|
|
Cladding Diameter
|
μm
|
125±1μm
|
125±1μm
|
125±1μm
|
|
Max Attenuation
|
dB/km
|
0.4dB/km 1310nm 0.3dB/km 1550nm
|
3.5dB/km 850nm 1.5dB/km 1300nm
|
3.5dB/km 850nm 1.5dB/km 1300nm
|
|
Operating Temperature
|
℃
|
-40℃~+85℃
|
||
|
Inner diameter
|
mm
|
2.0±0.10mm
|
||
|
Outer-diameter
|
mm
|
5.0±0.20mm
|
||
|
Net weight
|
kg/km
|
65
|
||
|
Allowable bending radius
|
(mm)
|
Dynamic 20D Static 10D
|
||
|
Allowable tensile
|
(N)
|
Long-term:600 Short-term:800
|
||
|
Crush resistant
|
N/100 mm
|
Long-term:3000 Short-term:5000
|
||
Packing&Delivery
1. Most of samples: 3-7 days.
2. Wholesales orders: 15-18days according to different quantities.
3. OEM order: 25-30 days after receiving your drawing files confirmation and payment.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are
acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
